Reliable horizontal solutions for every flow
WPIL offers a comprehensive range of horizontal pumps, designed to deliver efficient, reliable, and easy-to-maintain solutions across a wide spectrum of industrial, power, irrigation, and municipal applications. Built for durability and precision, available in a range of metallurgies, they are ideal for operations where performance, control, and serviceability are critical. These products are market leaders in performance.
All WPIL horizontal pumps are designed with the end user in mind, delivering high operational efficiency, ease of operation and maintenance, rugged construction for long service life, and reliable performance under varying flow conditions.
Whether it’s municipal water supply, industrial processing, or wastewater management, these pumps offer a proven, high-performance solution that stands the test of time.

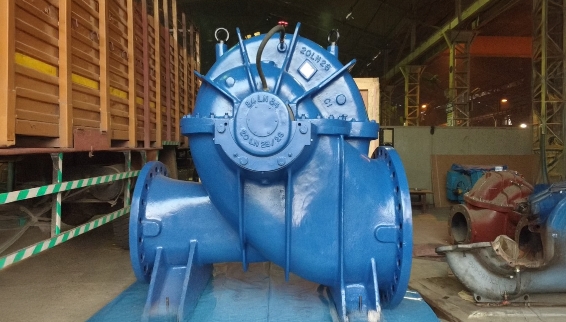

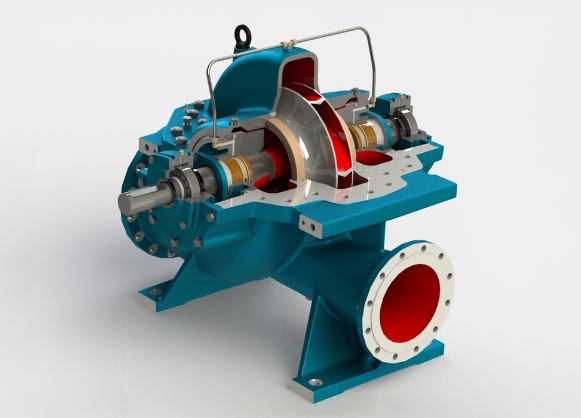

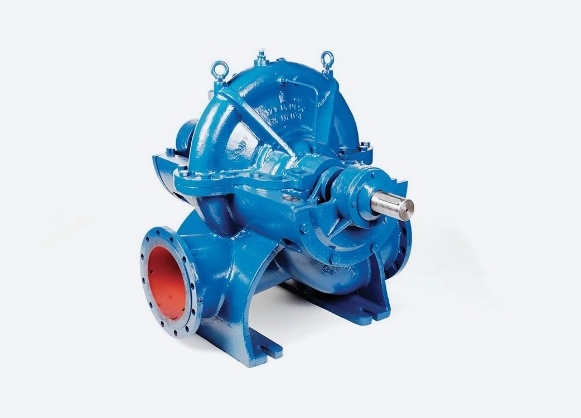

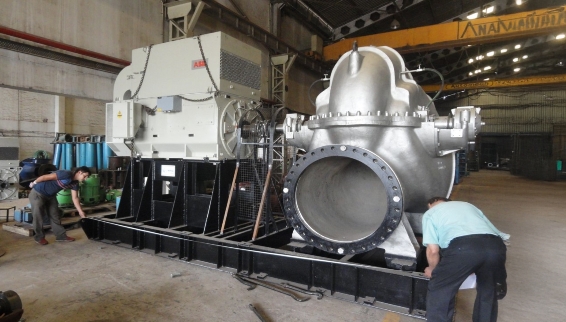

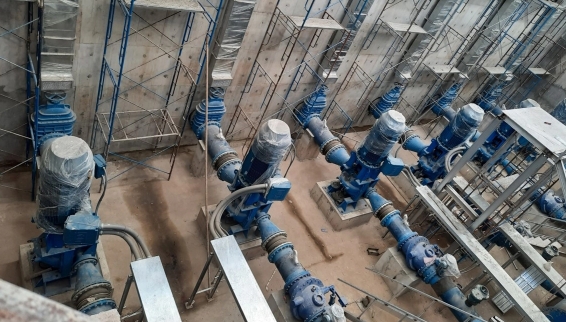

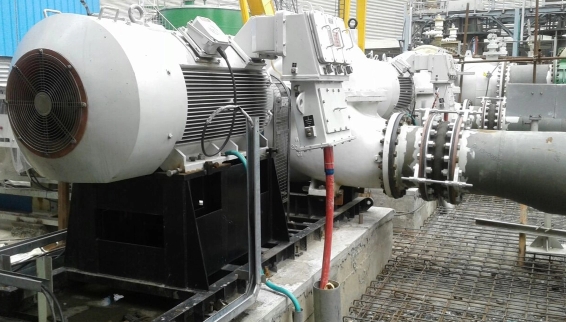

Split Case
Performance
- Range: Up to 15,000 m³/hr
- Head: Up to 200 m
- Power: 2,000 kW
Construction
- Single or two stage pump
- Design: Axial split case
- Impeller Single or dual suction closed type

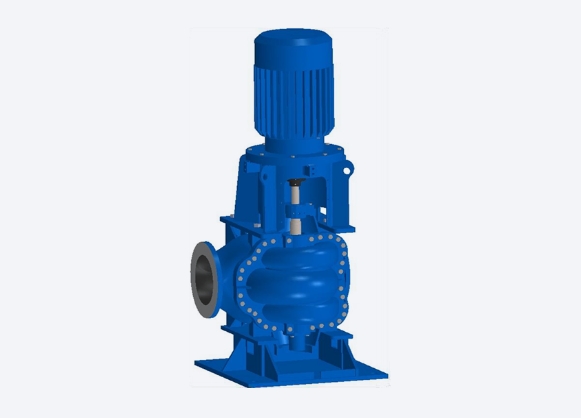

- Execution:Horizontal and vertical

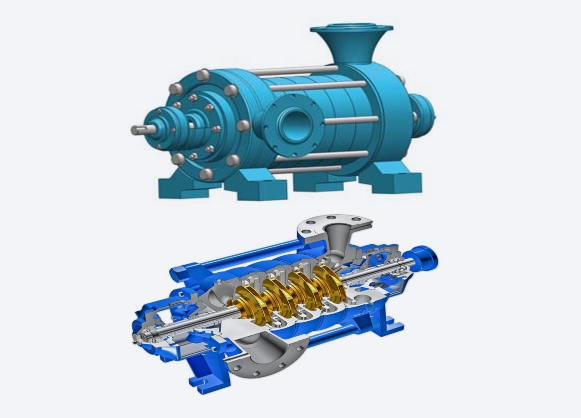

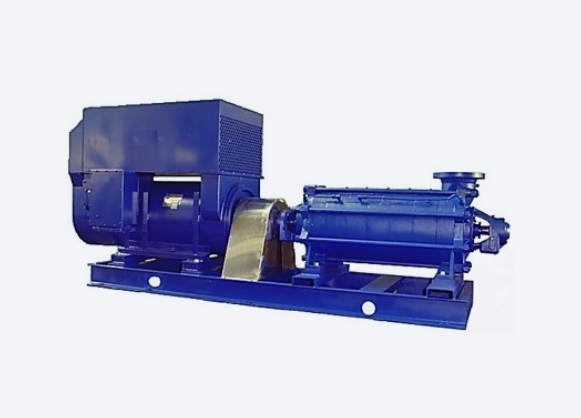

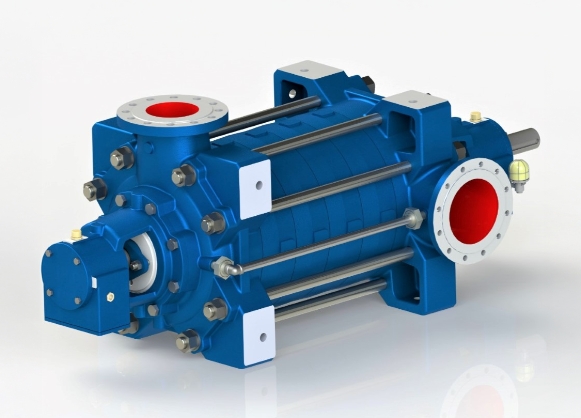

Multistage
Performance
- Range: Up to 450 m³/hr
- Head: Up to 650 m
Construction
- Design: Numerous ring section diffuser casings bolted between suction and delivery
- Impeller: Closed type
- Seal: Packing glad or mechanical seal

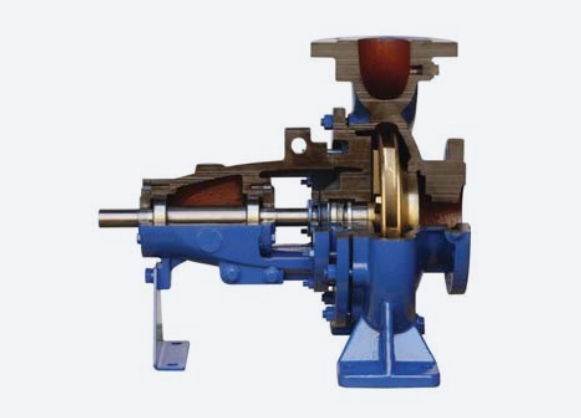

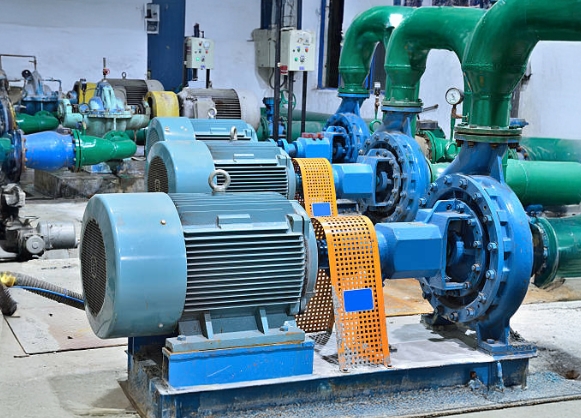

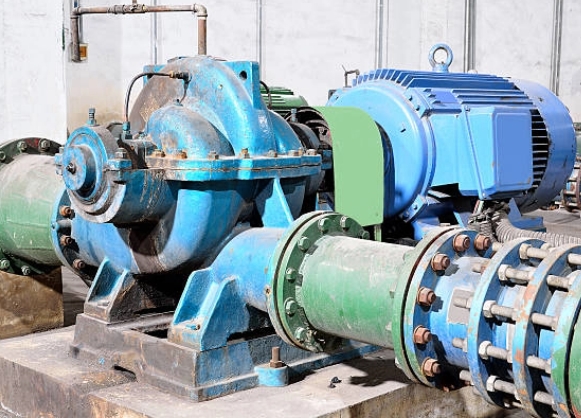

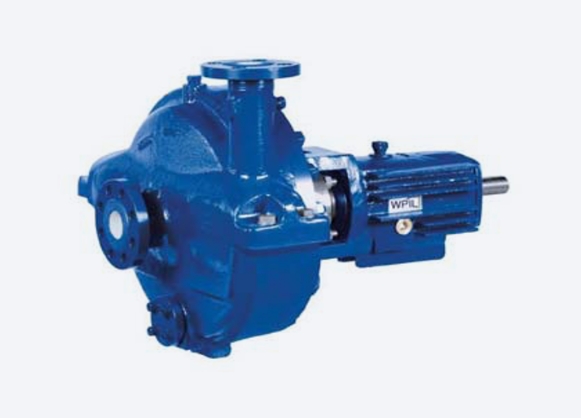

End Suction
Performance
- Range: Up to 420 - 5,000 m³/hr
- Head: Up to 140 m
Construction
- Design: Radial split case
- Impeller Closed or open type
- End suction back pull out

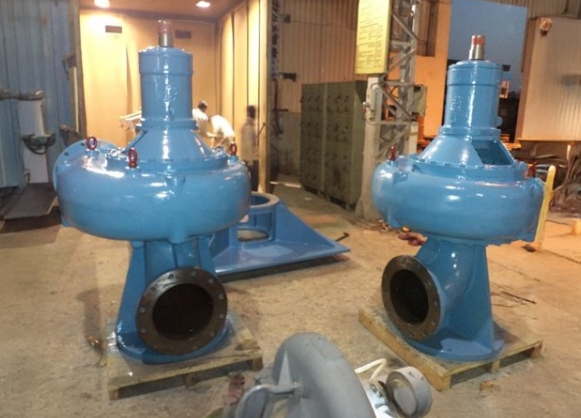

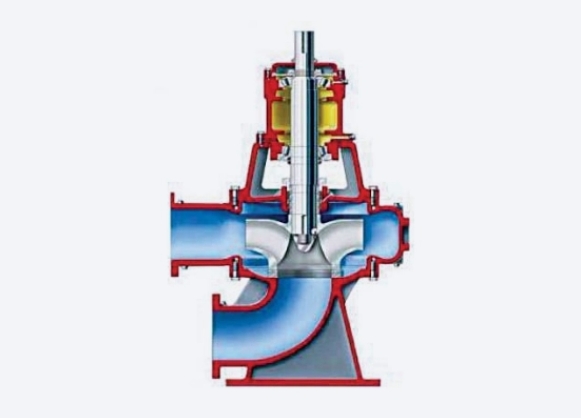

Non Clog
Performance
- Range: Up to 9,400 m³/hr
- Head: Up to 50 m
Construction
- Design: Radial split end suction
- Execution: Horizontal and vertical
- Impeller: Enclosed non-clog, mixed flow type
